RV Generator Pigtail Adapter 30A TT-30P to 50A 14-50R, 1 FT Heavy Duty Camper Power Connector for Level 2 EV Charger
RV Generator Pigtail Adapter 30A TT-30P to 50A 14-50R, 1 FT Heavy Duty Camper Power Connector for Level 2 EV Charger
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Origin: Mainland China
Type: RV power cord adapter

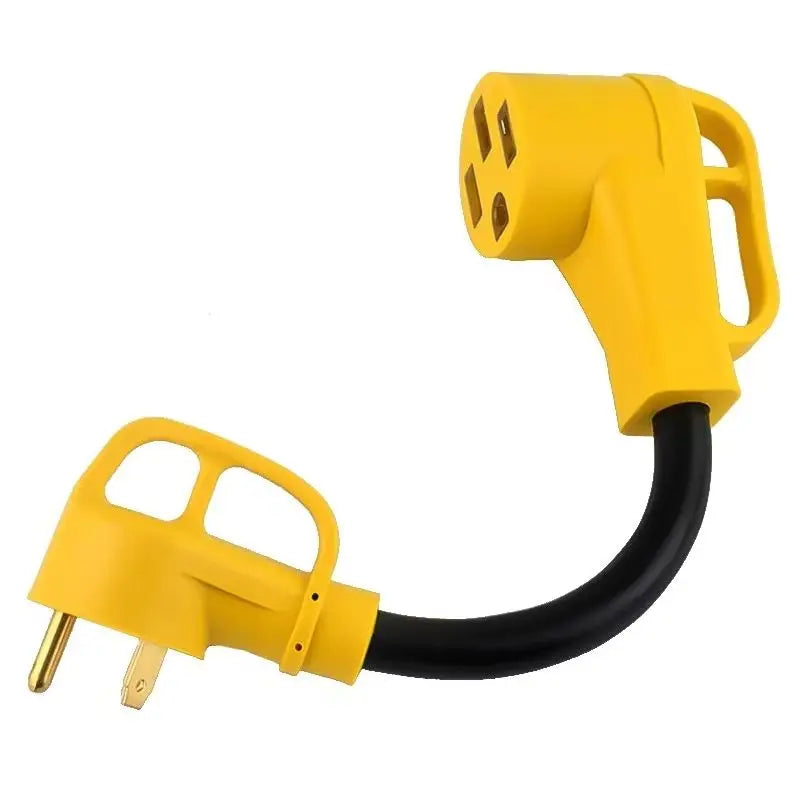

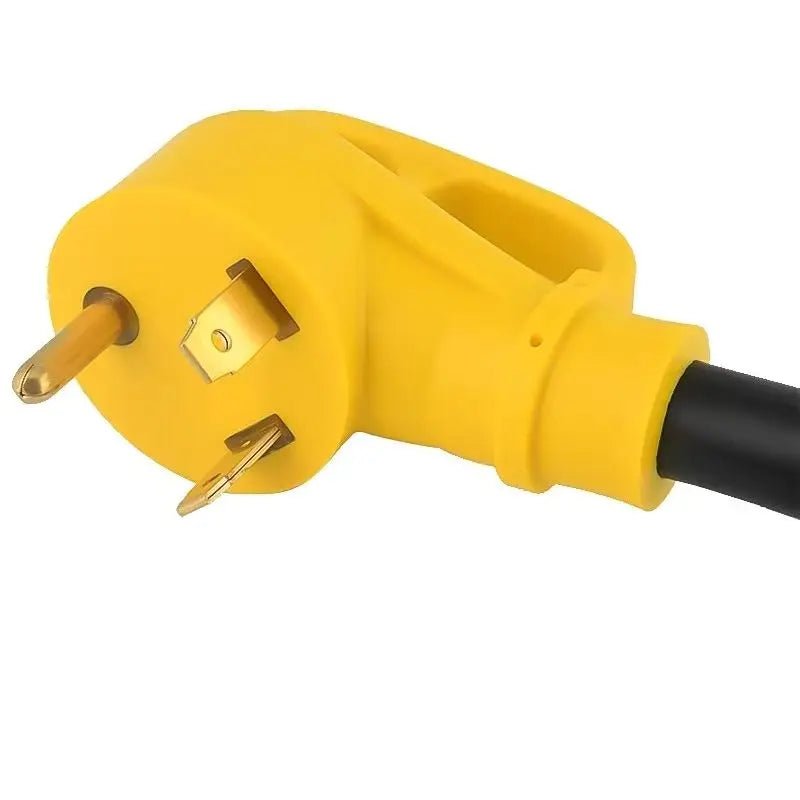

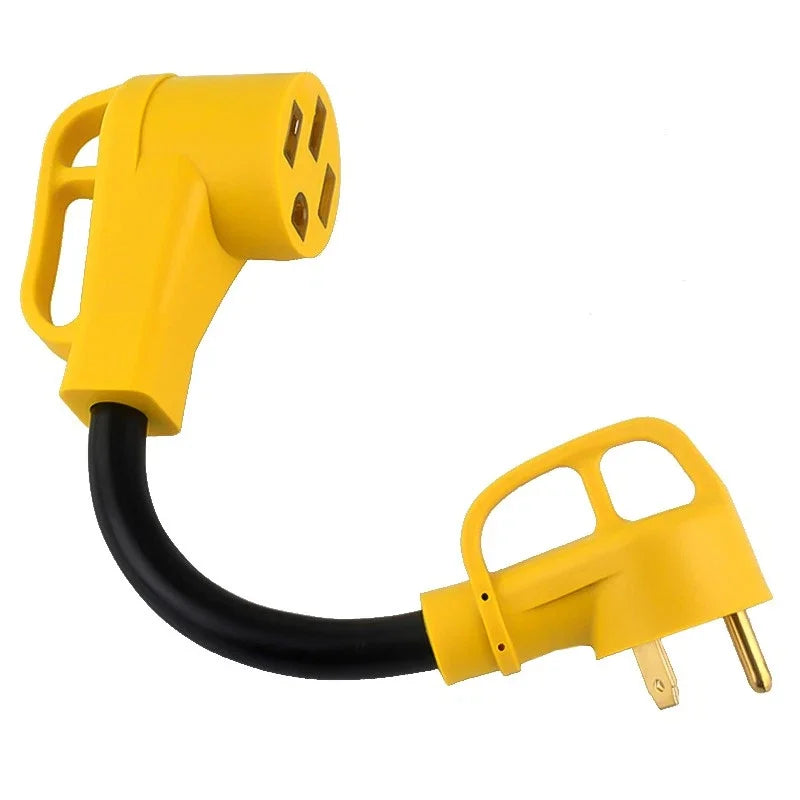

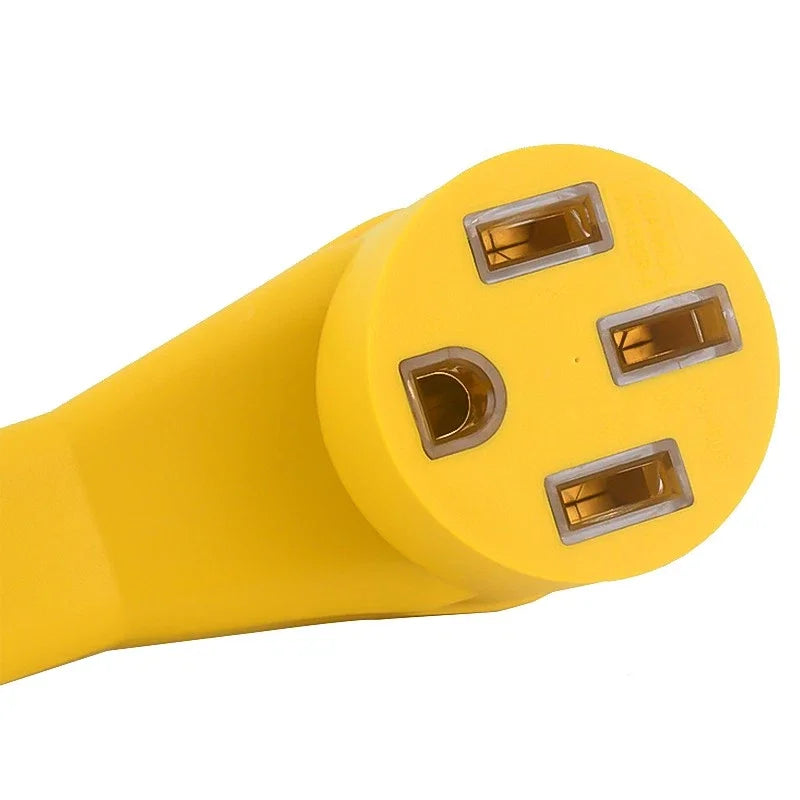

TT-30P to 14-50R RV Generator Adapter Cord – 12 Inch 30 Amp Male to 50 Amp Female – 125V 3750W Heavy Duty Pigtail for RV, Camper, EV Charger – ETL Listed
Description
Connect your 30-amp RV or generator to a 50-amp power source safely and reliably with this heavy-duty TT-30P to 14-50R adapter cord. Designed for RV owners, campers, and EV drivers, this short 12-inch pigtail converts a standard 30-amp TT-30P male plug into a 50-amp 14-50R female receptacle, allowing you to plug your 30-amp RV cord into a 50-amp pedestal or generator outlet.
Built with pure copper wire and flame-retardant PVC jacket, this adapter delivers full 3750W (125V x 30A) power handling capability. The ETL listing ensures compliance with North American safety standards, giving you peace of mind during every use.
📋 Specifications
Feature |
Detail |
Connector Type |
NEMA TT-30P Male → NEMA 14-50R Female |
Current Rating |
30 Amps (max) |
Voltage Rating |
125 Volts AC |
Power Rating |
3,750 Watts |
Cord Length |
12 Inches (1 Foot) |
Wire Gauge |
10 AWG (or as specified) |
Jacket Material |
Flame-Retardant PVC |
Certification |
ETL Listed |
Operating Temp |
-40°F to 140°F (-40°C to 60°C) |
Color |
Black (as shown) |
📦 Package Includes
1 x TT-30P to 14-50R Adapter Cord (12 inches)
🚐 Common Applications
Device / Situation |
How It Works |
30A RV at 50A Campground Pedestal |
Plug your RV's 30A shore power cord into the 14-50R end, then connect the TT-30P to the pedestal's 50A outlet. |
Generator with 30A TT-30R Outlet |
Connect the adapter to your generator's 30A outlet, then plug your 50A RV cord into the 14-50R end. |
Level 2 EV Charger |
Many Level 2 EV chargers use a 14-50P plug. This adapter allows you to power them from a 30A generator or outlet. |
Home Dryer Outlet (14-50R) |
Temporarily power your RV from a home 50A dryer outlet using this adapter. |
⚠️ Important Safety Notes
Do NOT exceed 30 Amps continuous load. Even though the female end is a 50A connector, the adapter is limited to 30A (the rating of the TT-30P plug).
Check your generator/outlet configuration before use. This adapter works with TT-30R receptacles (standard 30A RV outlets) and 14-50R receptacles (standard 50A RV/EV outlets).
Inspect regularly for signs of wear, overheating, or damage. Replace immediately if any issues are found.
Use only with properly grounded systems. This adapter does not convert voltage; it only adapts the physical connection.
🔧 Installation & Usage
Plug the TT-30P male end into your generator's 30A outlet or the 50A pedestal.
Connect your RV shore power cord (which has a 30A male TT-30P) into the 14-50R female end of the adapter.
Ensure all connections are fully seated and secure.
Turn on the generator or pedestal breaker and test your RV's electrical system.
